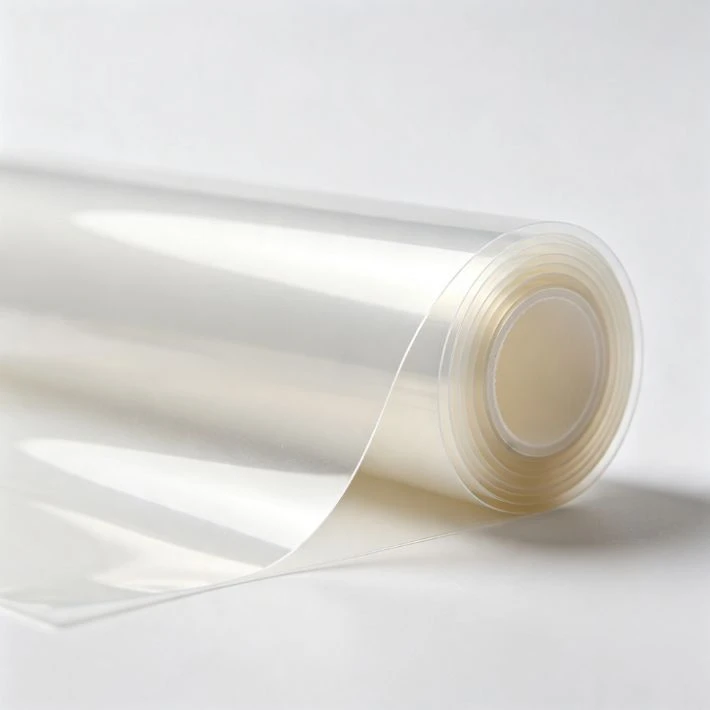

Product Overview
Flexible PVC Roll Film is a calendered thermoplastic substrate designed for protective packaging, commercial graphics, surface protection, and custom manufacturing. Engineered for clean processing, our rolls operate seamlessly on automated high-frequency (RF) welding, heat sealing, lamination, and die-cutting equipment. We supply custom roll widths, thickness gauges, and formulations to meet precise global manufacturing standards.
Technical Specifications
|
Parameter |
Standard Range |
Customization Options |
|
Material Base |
Polyvinyl Chloride (PVC) Resin |
Custom Plasticizer Blends |
|
Thickness Range |
0.05 mm – 2.0 mm |
Tight Tolerance Control |
|
Roll Width |
1000 mm – 2000 mm |
Precision Slitting Available |
|
Roll Length |
50 m – 1000 m |
Jumbo Rolls or Cut Sheets |
|
Optical Clarity |
Super Clear / Crystal Clear |
Translucent, Semi-Transparent, Opaque |
|
Color Options |
Natural Clear, White, Black |
Custom Pantone / Sample Match |
|
Hardness (Phr) |
26 phr – 60 phr |
Soft to Semi-Rigid Formulations |
|
Surface Finish |
High Gloss, Fine Matte, Embossed |
Textured Patterns |
|
Processing Compatibility |
RF Welding, Thermal Sealing, Lamination, Die-Cutting |
Automated Machinery Compatible |
|
Print Compatibility |
Surface Treated |
Gravure, Screen, UV Digital Flexo |
Key Features of Flexible PVC Roll Film
Gauge Precision
Continuous thickness monitoring prevents edge-weave and material deformation during high-speed rewinding and converting.
Mechanical Toughness
Maintains flexibility under repeated folding, resisting stress cracking and surface whitening.
Enhanced Surface Tension
Optimized surface energy ensures uniform ink wet-out and reliable adhesion without flaking.
Reliable Thermal Bonding
Fuses cleanly under radio-frequency and thermal heat sealers to form high-strength, leak-proof seams.
Controlled Surface Textures
Available in high-gloss, anti-glare matte, or anti-slip embossed options to suit specific application needs.
Specialized Additive Integration
Can be formulated to resist UV degradation, static buildup, flame propagation, or low-temperature embrittlement.
Industry Applications of Flexible PVC Roll Film
Protective Packaging
Used for clear pouch windows, protective shrouds, and waterproof covers.
Commercial Graphics & Signage
Functions as a durable substrate for indoor/outdoor banners, overlays, and self-adhesive signage.
Industrial Surface Protection
Protects polished metals, glass sheets, and electronic housings from scratches during assembly and transport.
Interior & Surface Covering
Applied in soft partition curtains, protective table coverings, and decorative laminate overlays.
Technical Manufacturing
Utilized in marine enclosures, flexible liquid containment, protective workwear, and automotive interior components.
Tailored Material Options
1.Gauge & Width Configuration
Roll dimensions are slit to exact millimetric tolerances, minimizing edge scrap and reducing machinery setup time.
2.Color & Optical Transmittance
Engineered from ultra-clear optical grades for high visibility to solid opaque colors matched precisely to target shade samples.
3.Surface Grain Variations
Select smooth glossy surfaces for transparency, satin matte to eliminate reflections, or textured grains for scratch resistance.
4.Specialized Performance Formulations
● UV Protection: Prevents yellowing and surface chalking under outdoor sunlight exposure.
● Anti-Static Control: Dissipates static charges, reducing dust attraction during automated processing.
● Flame Retardancy: Formulated to comply with international fire safety standards for interior applications.
● Cold-Flex Modification: Maintains soft tactile properties and flex-crack resistance in sub-zero environments.
Production & Quality Assurance
1. Compound Preparation
PVC resin, plasticizers, and functional additives are mixed under controlled temperatures to ensure uniform batch dispersion.
2. Calendering & Gauge Control
Molten PVC compound passes through precision calender rolls equipped with laser thickness sensors to maintain web uniformity.
3. In-Line Inspection
Automated optical scanners monitor the continuous film for surface blemishes or contamination in real time.
4. Precision Slitting & Rewinding
Master rolls are slit to specification and rewound under regulated tension to prevent core crushing or telescoping.
5. Protective Export Packaging
Finished rolls are wrapped in protective moisture barrier films, fitted with core plugs, and palletized for safe ocean transport.
FAQ
Q: What gauge tolerances are maintained during production?
A: Our automated calendering lines utilize laser thickness gauges to maintain consistent web uniformity within ±3% to ±5% depending on total film thickness.
Q: Is this material compatible with high-frequency (RF) welding equipment?
A: Yes, our formulations feature balanced dielectric properties, enabling fast heating and strong seam integrity on RF welding lines.
Q: Can you supply UV-stabilized film for outdoor applications?
A: We produce custom weatherable formulations containing light stabilizers designed to prevent yellowing and embrittlement under outdoor exposure.
Q: What specifications are needed to obtain an accurate quote?
A: Please specify the required film thickness, roll width, roll length, color, surface finish, functional requirements, and estimated order quantity.
Q: Are sample rolls available for testing prior to bulk production?
A: Yes, sample rolls and material swatches can be provided for chemical, printing, and sealing evaluation prior to commercial order placement.
Q: How are the rolls packaged for ocean transport?
A: Rolls are wrapped in moisture-proof plastic film, suspended on sturdy wooden pallets, and edge-protected to prevent transit damage.
