Antistatic PVC
Product Overview
Our Antistatic PVC (Polyvinyl Chloride) is an engineering thermoplastic engineered with an integrated conductive polymer network, maintaining a stable surface resistivity of 10^6 to 10^9 ohms/square. Unlike temporary topical anti-static coatings that wash off or degrade under varying humidity, our formulation ensures permanent ESD control. It combines chemical resistance, self-extinguishing flame retardancy, and dimensional stability, making it the primary specification material for cleanroom enclosures, semiconductor equipment windows, and electronics manufacturing workspace shields.
-
![ESD Anti-Static PVC Floor Mat]()
ESD Anti-Static PVC Floor MatESD Anti-Static PVC Floor Mat is a long-lasting anti-static ground protection product built for high-load industrial scenarios. It adopts thickened wear-resistant formula and anti-slip texture...read more -
![Cleanroom Dedicated ESD PVC Curtain]()
Cleanroom Dedicated ESD PVC CurtainCleanroom Dedicated ESD PVC Curtain is a special anti-static curtain product specially developed for high-grade clean rooms. On the basis of conventional anti-static curtains, it further optimizes...read more -

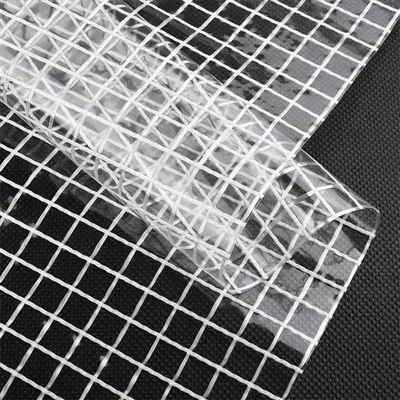

![Anti-Static PVC Coated Mesh Fabric]()
Anti-Static PVC Coated Mesh FabricAnti-Static PVC Coated Mesh Fabric is an economical anti-static coated mesh fabric launched for general industrial scenarios. It adopts the lightweight process of single-sided anti-static PVC...read more -
![ESD Clear PVC Film Roll]()
ESD Clear PVC Film RollESD Clear PVC Film Roll is a transparent film product specially developed for anti-static scenarios requiring visual observation. Different from traditional opaque anti-static materials, this ESD...read more -
![ESD Anti-Static PVC Workbench Mat]()
ESD Anti-Static PVC Workbench MatESD Anti-Static PVC Workbench Mat is a desktop anti-static protective product specially built for electronic production, testing and maintenance workstations, and is specially optimized for...read more -
![Anti-Static PVC Coated Mesh Fabric]()
Anti-Static PVC Coated Mesh FabricAnti-Static PVC Coated Mesh Fabric is a high-strength composite anti-static protective fabric, adopting a structure of double-layer anti-static PVC films compounded with high-strength polyester...read more -
![ESD Anti-Static PVC Floor Mat]()
ESD Anti-Static PVC Floor MatESD Anti-Static PVC Floor Mat is a ground anti-static protective product built for electronic factories, laboratories and equipment maintenance workshops. This ESD Anti-Static PVC Floor Mat adopts...read more -
![Industrial Grade ESD PVC Grid Curtain]()
Industrial Grade ESD PVC Grid CurtainIndustrial Grade ESD PVC Grid Curtain is an industrial-grade anti-static protective product specially built for clean rooms in electronics, pharmaceuticals, food and other industries. This...read more -

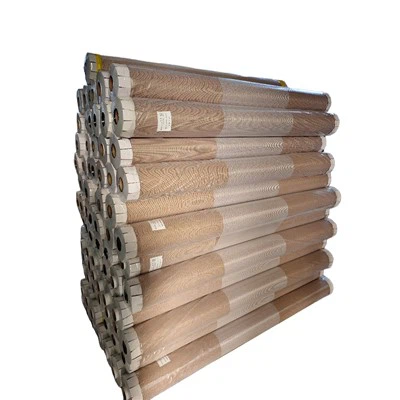

![Clear PVC Film Roll]()
Clear PVC Film RollOur clear PVC film roll is designed for use in clean room environments across electronics, medical, and food industries. Our factory has been manufacturing this product since 2016 in our...read more -
![ESD PVC Grid Curtain]()
ESD PVC Grid CurtainOur ESD PVC grid curtain, also known as an ESD grid curtain, is designed for clean room applications in electronics, medical, and food industries. Our factory has been manufacturing this product...read more -
![Black PVC Grid Curtain]()
Black PVC Grid CurtainOur black PVC grid curtain, also known as an ESD black conductive curtain, is designed for clean room applications in electronics, medical, and food industries. Since 2016, we have been...read more -
![Yellow PVC Grid Curtain]()
Yellow PVC Grid CurtainOur yellow PVC grid curtain, also known as an ESD yellow anti-UV curtain, is designed for clean room applications in electronics, medical, and food industries. Since 2016, we have been...read more
Key Features
Permanent Surface Resistivity
Maintains stable ESD performance (10^6 to 10^9 ohms/square) independent of ambient humidity levels.
01
Optical Clarity
High light transmittance exceeding 88% for transparent grades, ensuring clear visibility in monitoring environments.
02
Chemical Resistance
Inherently resistant to inorganic acids, alkalis, alcohols, and standard cleanroom cleaning agents (e.g., IPA, hydrogen peroxide).
03
Flame Retardancy
Self-extinguishing material rated to UL94 V-0, reducing fire risks in high-tech manufacturing facilities.
04
Machinability
High density and uniform molecular structure allow precise CNC routing, laser cutting, drilling, and line-bending without edge chipping.
05
Technical Specifications
|
Property |
Test Standard |
Typical Value (Transparent Grade) |
Typical Value (Opaque/Grey Grade) |
|
Surface Resistivity |
ASTM D257 |
10^6 to 10^9 ohms/square |
10^6 to 10^9 ohms/square |
|
Static Decay Time |
Federal Test Standard 101C, Method 4046 |
Less than 2.0s (+/- 5000V to 0V) |
Less than 2.0s (+/- 5000V to 0V) |
|
Density |
ISO 1183 |
1.38 g/cm3 |
1.45 g/cm3 |
|
Light Transmittance |
ASTM D1003 |
Greater than 88% (3mm thickness) |
Opaque |
|
Tensile Strength |
ISO 527 |
Greater than 52 MPa |
Greater than 50 MPa |
|
Flammability |
UL94 |
V-0 |
V-0 |
|
Standard Thickness Range |
— |
2mm to 20mm |
3mm to 30mm |
|
Standard Sheet Size |
— |
1000x2000mm, 1220x2440mm |
1000x2000mm, 1220x2440mm |
Applications
-
Cleanroom Partitions & Windows
Installed in ISO Class 4 to 8 cleanrooms to prevent dust attraction and electrostatic discharge.
-
Semiconductor Handling Equipment
Machine guards, wafer cassette storage racks, and conveyor covers.
-
Electronics Assembly Workstations
ESD-safe table mats, component trays, and test fixture housings.
-
Pharmaceutical Equipment
Inspection windows and protective shields exposed to aggressive sterilization chemicals.
Manufacturing Capability
Extrusion & Press Lines
Equipped with automated calendar extrusion lines and heavy-duty hydraulic presses, capable of producing sheets up to 30mm in thickness with strict gauge control.
Thermal Annealing Process
In-line thermal annealing ovens eliminate internal molecular stresses, keeping post-machining warpage below 1.5mm per meter.
Production Capacity
Monthly output reaches 450 metric tons, supporting steady supply chains for global industrial distributors.
Quality Control
Resistivity Testing
Every production lot is tested using a high-resistance meter (Quad-probe method per ASTM D257) across 5 designated points to verify uniform ESD performance.
Dimensional Inspection
Automated optical measuring systems check thickness tolerances (+/- 0.15mm) and diagonal squareness prior to packaging.
Batch Traceability
Each pallet is labeled with a unique barcode linked to raw material lot numbers and curing temperature logs, retained for 3 years to support customer audits.
OEM & Customization
Dimension & Tolerances
Custom cut-to-size panels, CNC-milled component kits, and custom thickness requirements (1mm to 50mm).
Color Options
Clear transparent, smoky grey, white, and opaque black.
Surface Finish
Single-side or double-side anti-static treatment, matte-to-matte or polished-to-polished finishes.
Export Packaging
PE laser film masking on both sides, interleaved with soft polyethylene foam, packed in fumigation-free wooden crates.
Frequently Asked Questions
We're well-known as one of the leading antistatic PVC manufacturers and suppliers in China, specialized in providing high quality customized products to global clients. Please feel free to wholesale cheap antistatic PVC in stock here from our factory. Contact us for quotation and free sample.
